Raimondi RAIZOR MTC2X Tile Cutting System for large tiles up to 153 cm, 2 rails 5.3 kg

High-Precision Modular Tile Cutting System

Cuts perfectly. Fast. Stress-free.

Introducing the Raimondi RAIZOR - Large Tile Cutting Guide Rail up to 153 cm – a professional cutting system that gives you absolute control and surgical precision when working with tiles.

Whether you are a professional tiler or working on your own project at home – here you have a tool you can rely on.

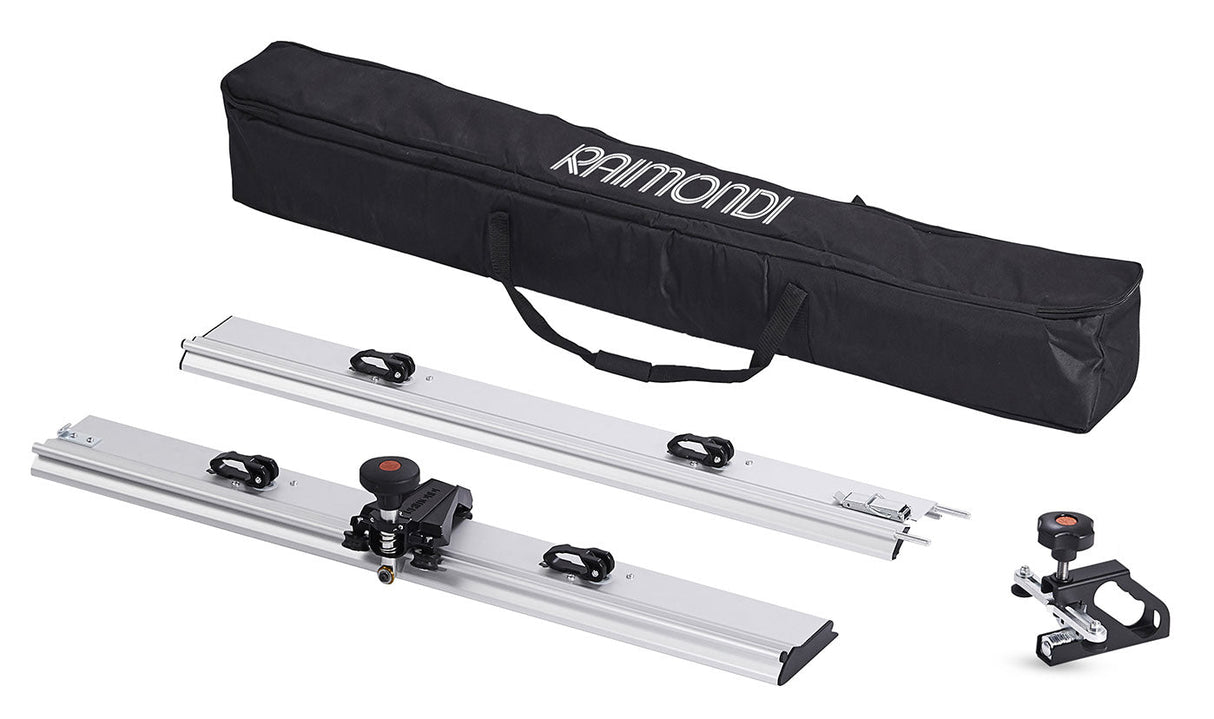

🔧 What you get:

✅ 2 Connectable Rails

• Each rail allows cutting up to 66 cm

• Connected together they reach up to 153 cm

• Ideal solution for standard and large-format tiles

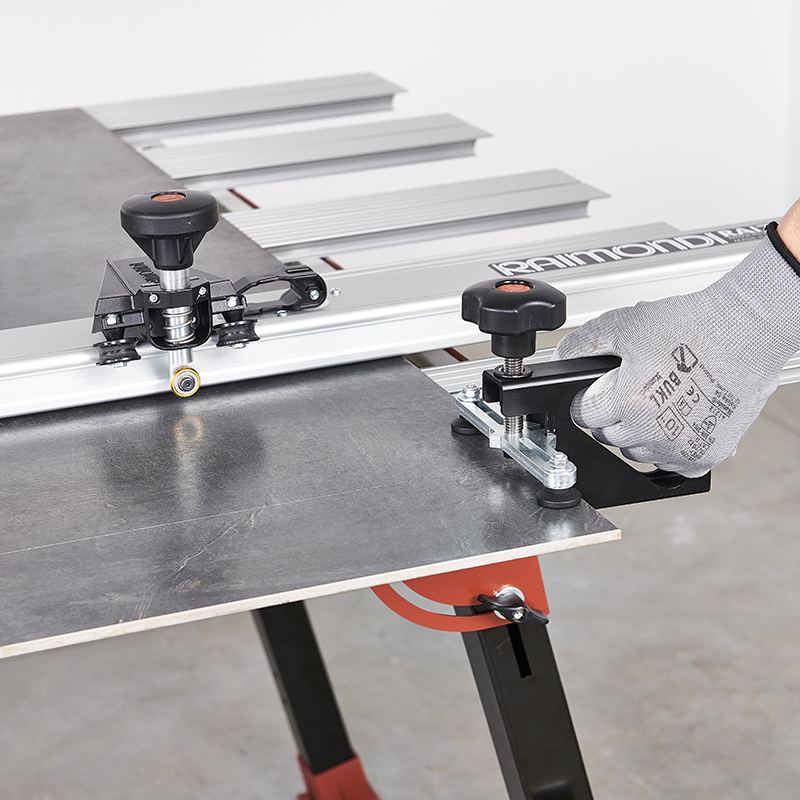

🛠 PREMIUM Breaking Pliers (3–15 mm)

• Suitable for tiles with a thickness of 3 to 15 mm

• Progressive pressure for clean and controlled breaking

• Less waste. More precision.

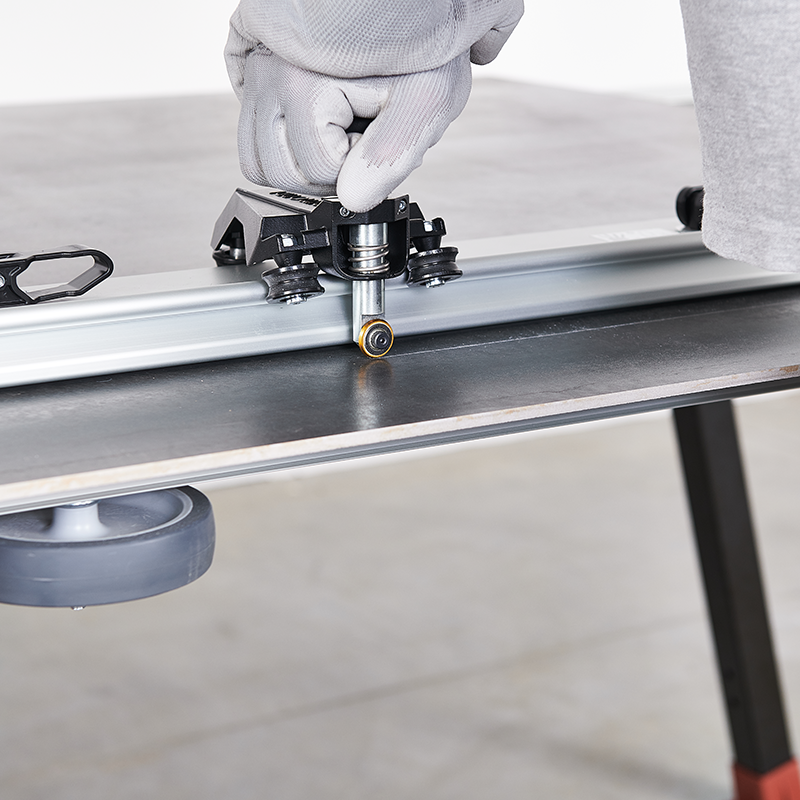

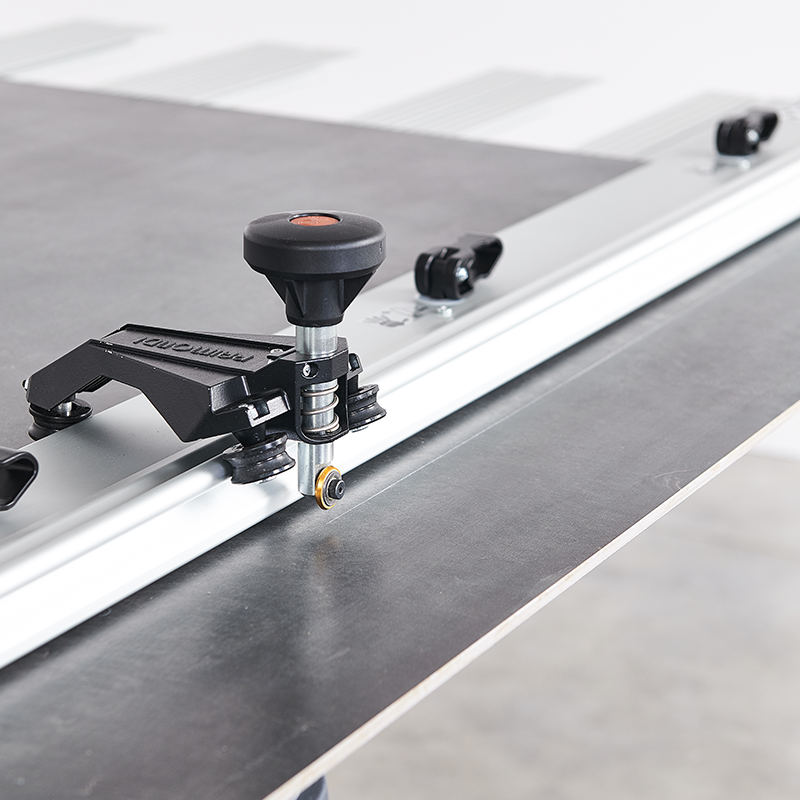

🛞 Ø20 mm Titanium Cutting Wheel

• Special titanium coating for exceptional durability

• Integrated bearing for smooth movement

• Maximum smooth and accurate cut

• Fast and easy replacement

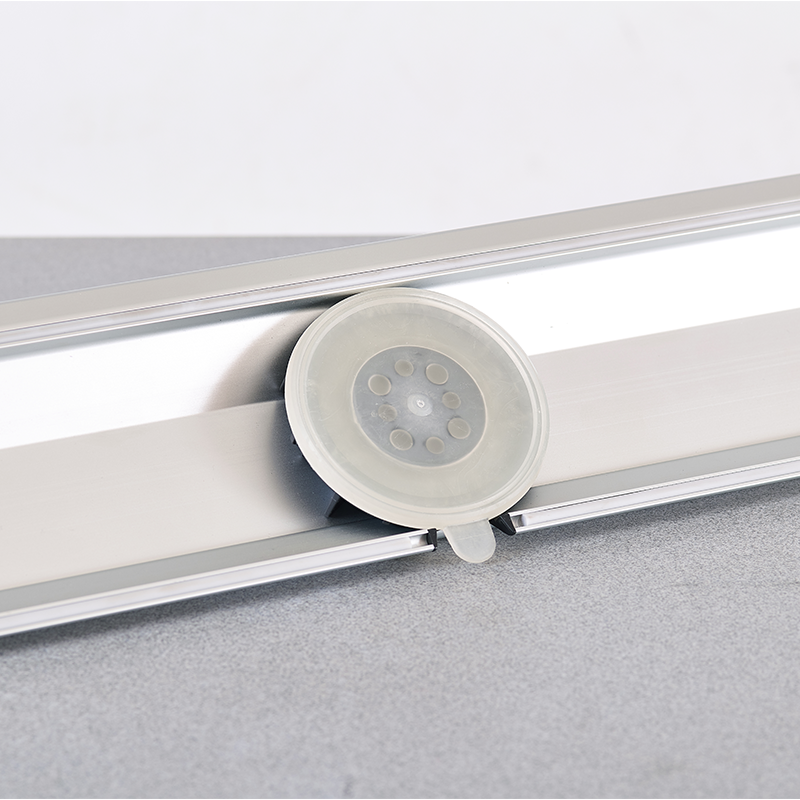

🧲 Suction Cups (Ø95 mm) with two sealing rings

• 4 powerful suction cups with release mechanism

• Firm fixation even on slightly textured surfaces

• Leave no marks

• Prevent slipping during cutting

🎯 Why you'll love it:

• Extruded aluminum rails are lightweight but extremely stable

• 3 high-performance resin wheels with 2 bearings for smooth movement

• Adjustment system for perfect parallelism between the rail and the cutting wheel

• Distance from cut line to profile: 20 mm

• Suction cup handles with 180° movement – do not hinder work

• Stability even with thick tiles and complex cuts

🎒 Compact and Padded Bag

• Length 110 cm

• Shoulder straps

• Internal tool pocket

• Capacity for up to 4 guides

Easy storage. Easy transport. Ready for any job.

🔄 Upgrade Options

• Pliers for tiles over 15 mm (code 169TM01AN)

• Additional 66 cm extension (item 433CP00M66)

• Compatible with Power-Raizor MKII module for cutting with diamond blade at 45°, 90°, and intermediate angles

📏 Technical specifications

• Maximum cutting length: 153 cm

• Tile thickness: 3–15 mm

• Cutting wheel diameter: 20 mm

• 4 double suction cups Ø95 mm

• Aluminum construction with high structural rigidity

💡 Who is it suitable for?

✔ Professional craftsmen
✔ Construction companies
✔ Installers of large-format tiles
✔ Home DIYers who want a professional result

🎯 The result?

Straight, clean cuts.
Fewer broken tiles.
Faster work.
More confidence in every project.

If you are looking for precision, stability, and mobility in one tool, this modular cutting system is the right choice.
