Graco 390 Classic PC Airless Sprayer on a Stand 17.0 kg
Graco 390 Classic PC Airless Sprayer on a Stand is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

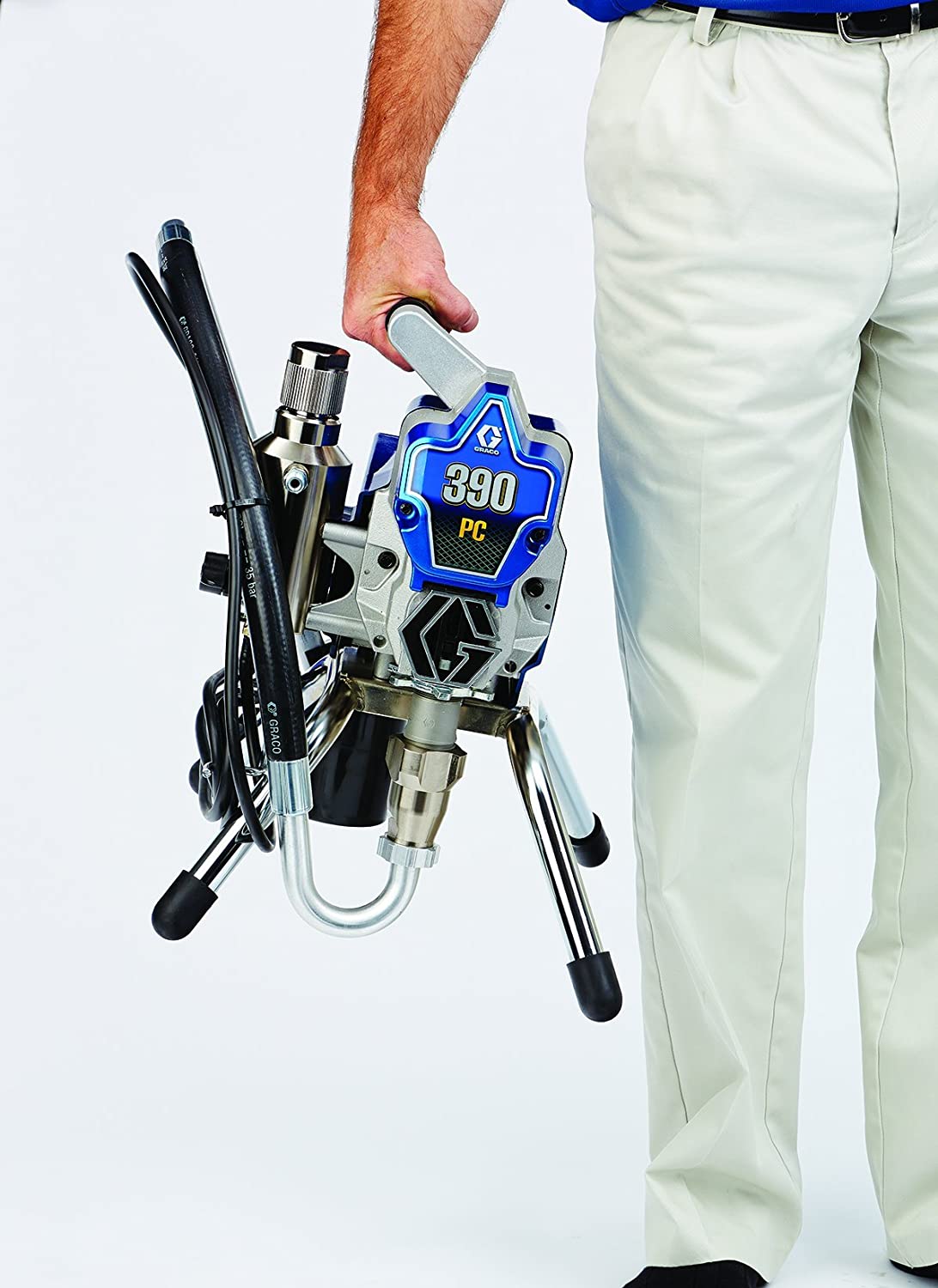

The stand-mounted Graco Classic 390 PC is a light, compact machine for small indoor projects. Weighing only 14 kg and with compact dimensions, it is easy to transport with little effort. With a flow rate of 1.8 liters per minute, the airless machine can be used primarily for indoor work with paints, primers, or other dispersions. Graco Classic 390 PC is particularly suitable for small businesses or one-person operations. The classic Graco 390 model can also be used as a second or backup machine, making it a useful addition for medium and large companies with large painting volumes.
Features:
Graco 390 Classic - airless paint spraying system with electric motor - the pump can work with most standard metal primers, as well as the most commonly used alkyd, epoxy and polyurethane primers and varnishes for corrosion protection. Suitable for varnishes, enamel, urethanes, alkyd, polyurethane, epoxy and zinc-epoxy coatings.
Technical parameters:
- Power supply 220V
- Maximum working pressure 230 bar
- Maximum flow rate 1.8 l/min.
- Maximum nozzle size for operation - 0.021”
- Motor with power 0.42 kW 11A, 220V 50/60Hz - “brush” type
- Minimum generator power supply 3.0 HP (1.9 kW)
- Weight 14 kg
Spray gun type SG3:
- Maximum working pressure for paint - 250 bar
- Hose connection size - ¼”
- Maximum operating temperature - 49°C
- Maximum nozzle size 0.025”
- Weight 550 gr

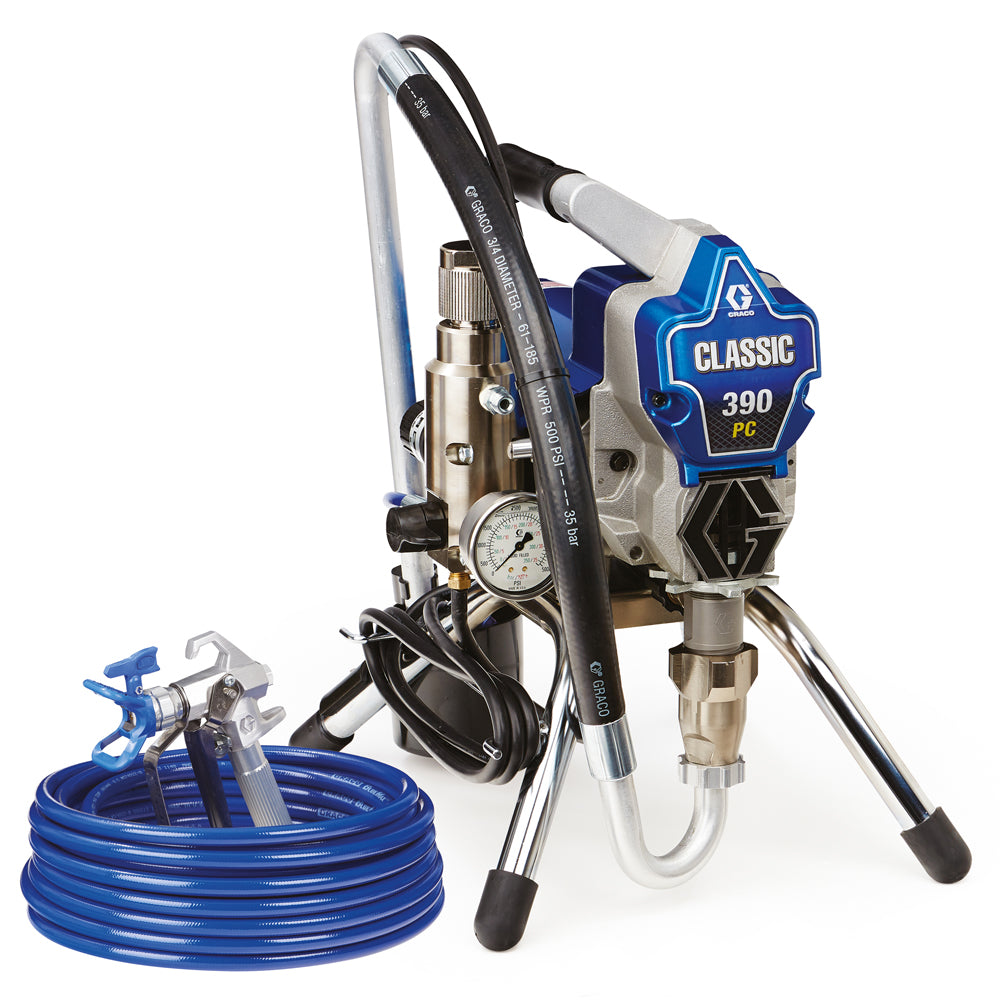

The set includes:
- Pump assembly on stand
- Suction assembly with filter
- Power supply cable - 3 m
- Paint hose (250 bar) - 15m x ¼”
- Recirculation line assembly
- SG3 gun equipped with RAC X (515) nozzle
- Paint filter for the pump and paint filter for the gun
- TSL oil for lubricating the piston rod from the pump part - 1 bottle 0.25 l
- Adjustable wrench
