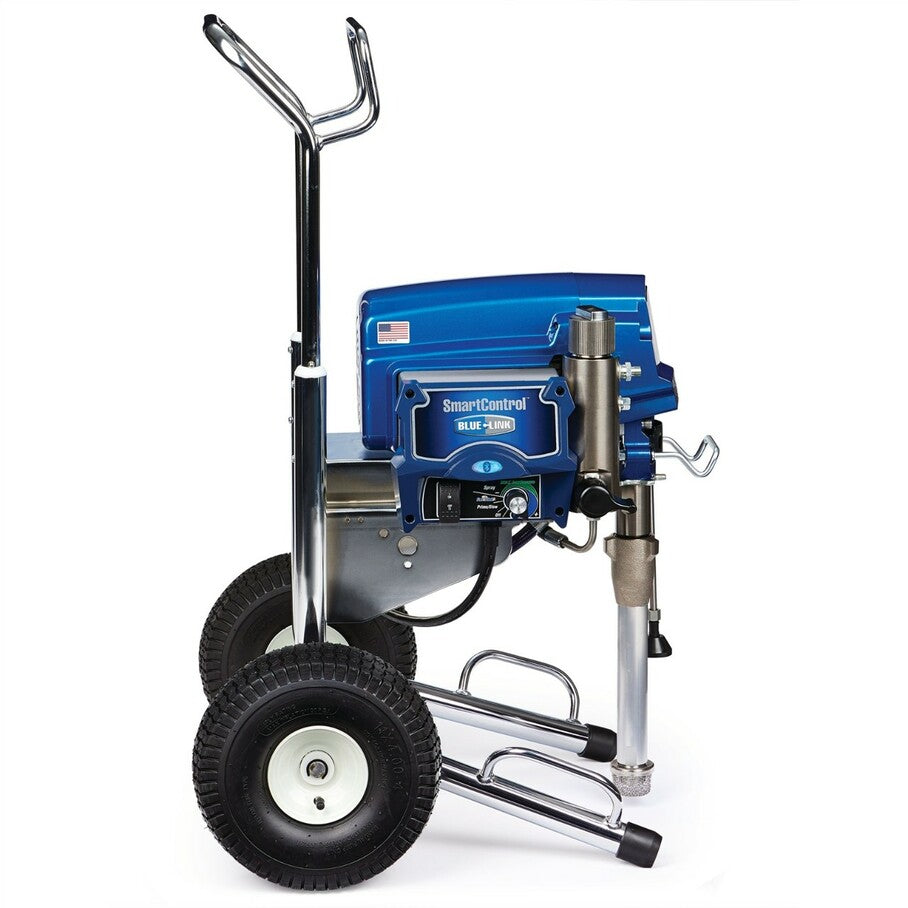

GRACO Ultra Max II 695 Standard Series Electric Airless Sprayer

GRACO Ultra Max II 695 Standard Series Electric Airless Sprayer

The Ultra Max II 695 Standard Series Hi-Boy electric airless sprayer provides dependable performance with features that include a 1.75 hp brushless DC motor, industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the Contractor PC gun and much more.

Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs.

Endurance Chromex Piston Pump

• Lasts 2X Longer than competing pumps
• Repack the pump in minutes with the new QuikPak Cartridge System
• Faster cleaning with the QuikAccess intake foot valve

SmartControl 4.0 with ProGuard Protection System

• Precision pressure control
• Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
• ProGuard prevents electrical damage from extreme jobsite power conditions
• WatchDog Pump Protection System automatically prevents pump damage if material supply is too low

MaxPower Motor

• Get more work done
• Proven performance for all painting applications
• High-torque brushless design.

Advantage Drive

• The longest lasting drive
• Hardened steel gears provide extremely quiet operation

FastFlush 2 System

• Fast cleaning now even FASTER
• Clean the pump 6X faster using ½ the water
• High-velocity fluid flow delivered with 60% higher motor speed

Specifications:

• Max. Tip Size: 1 gun – 0,031’’
• Max. Tip Size: 2 guns  – 0,023'’
• Max. Flow - 3,6 l/min
• Max. Pressure - 227 bar
• Motor rating - 1,3kW
