Festool Drilling set LR 32 Set 2.403 kg

Open in series.

Strengths and benefits

• With the LR 32 system – consisting of the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and a series hole drilling set – a series of precise holes with a distance of 32 mm can be drilled with the Festool router
• The LR 32 guide rail is supplemented with two side stops, which are positioned on the workpiece and the guide rail via a support slide
• The guide rail is positioned precisely in the longitudinal direction with a distance of 9.5, 16 or 32 mm from the edge using the longitudinal stop
• Centring mandrel for perfect centring of the router on the guide plate
• Spring-loaded positioning arrow for efficient operation when drilling a series of holes
• Perfect guidance through fine adjustment of the guiding clearance and the additional handle on the guide plate

Product application

• Creating rows of holes with 32 mm spacing
• Drilling hardware for concealed hinges

• for OF 900, OF 1000, OF 1010, OF 1400 in the FS-LR32 series hole system
• for use with guide rails with series holes

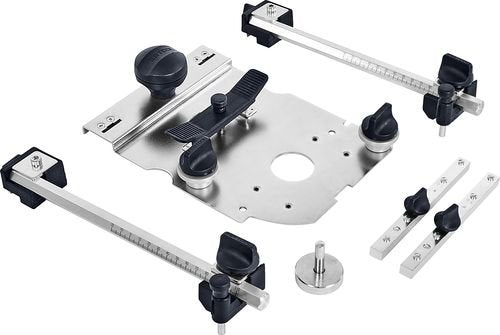

Scope of delivery
guide plate, centring mandrel, 2 side stops with support slide, 2 x longitudinal stop

All-inclusive guarantee--> Find out more

Accessories

• Guide rail FS 1400/2-LR 32 (496939)
• Guide rail FS 2424/2-LR 32 (491622)
• Guide plate FP-LR 32 (494340)
• Side stop SA-LR 32 (485758)
• Longitudinal stop LA-LR 32 FS (496938)

Consumables

• Dowel drill bit HW S8 D5/30 Z (491066)
• Through-hole drill bit HW S8 D5/30 (491064)
• Hardware drill bits HW S8 D35 (491077)
