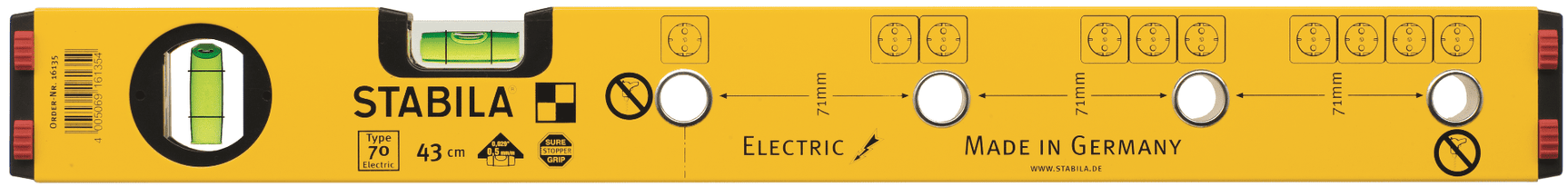

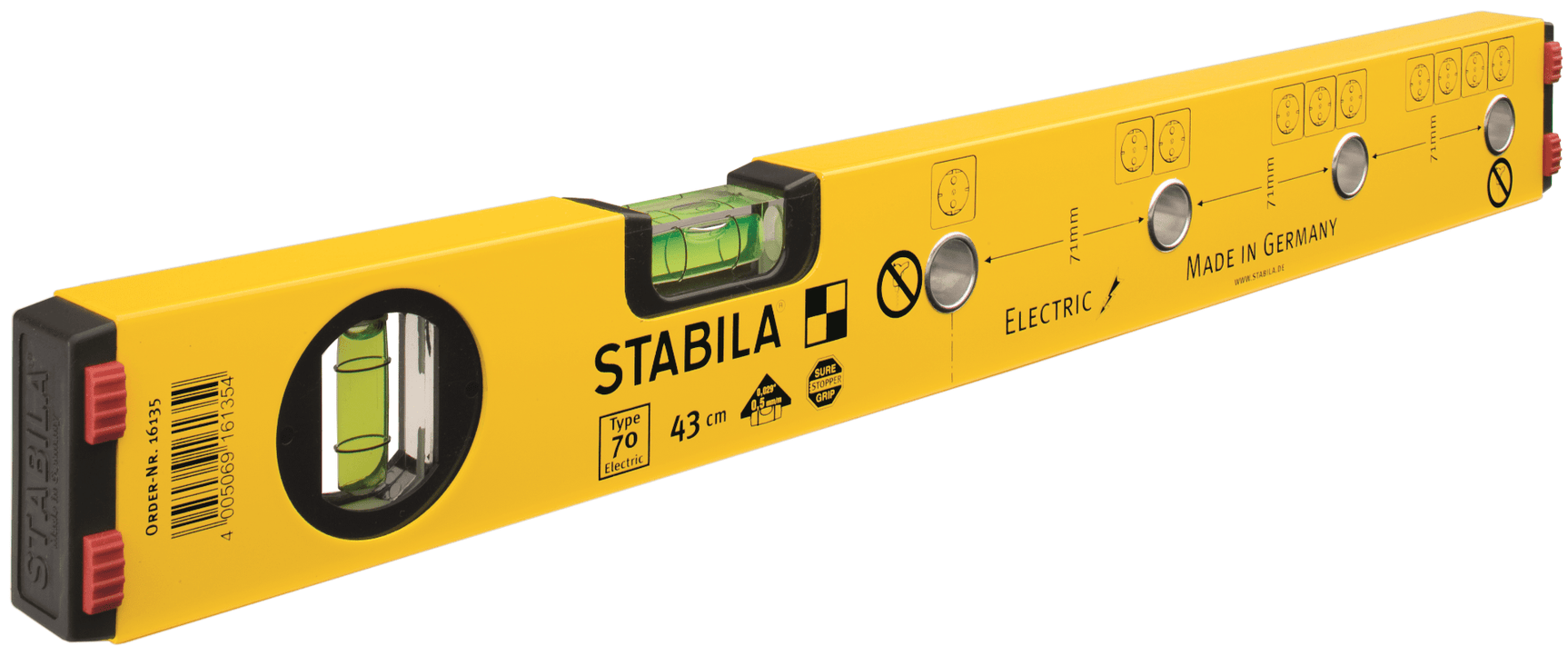

STABILA Aluminum electric level type 70 43 sm 0.7 kg

Aluminum electric level type 70 43 sm

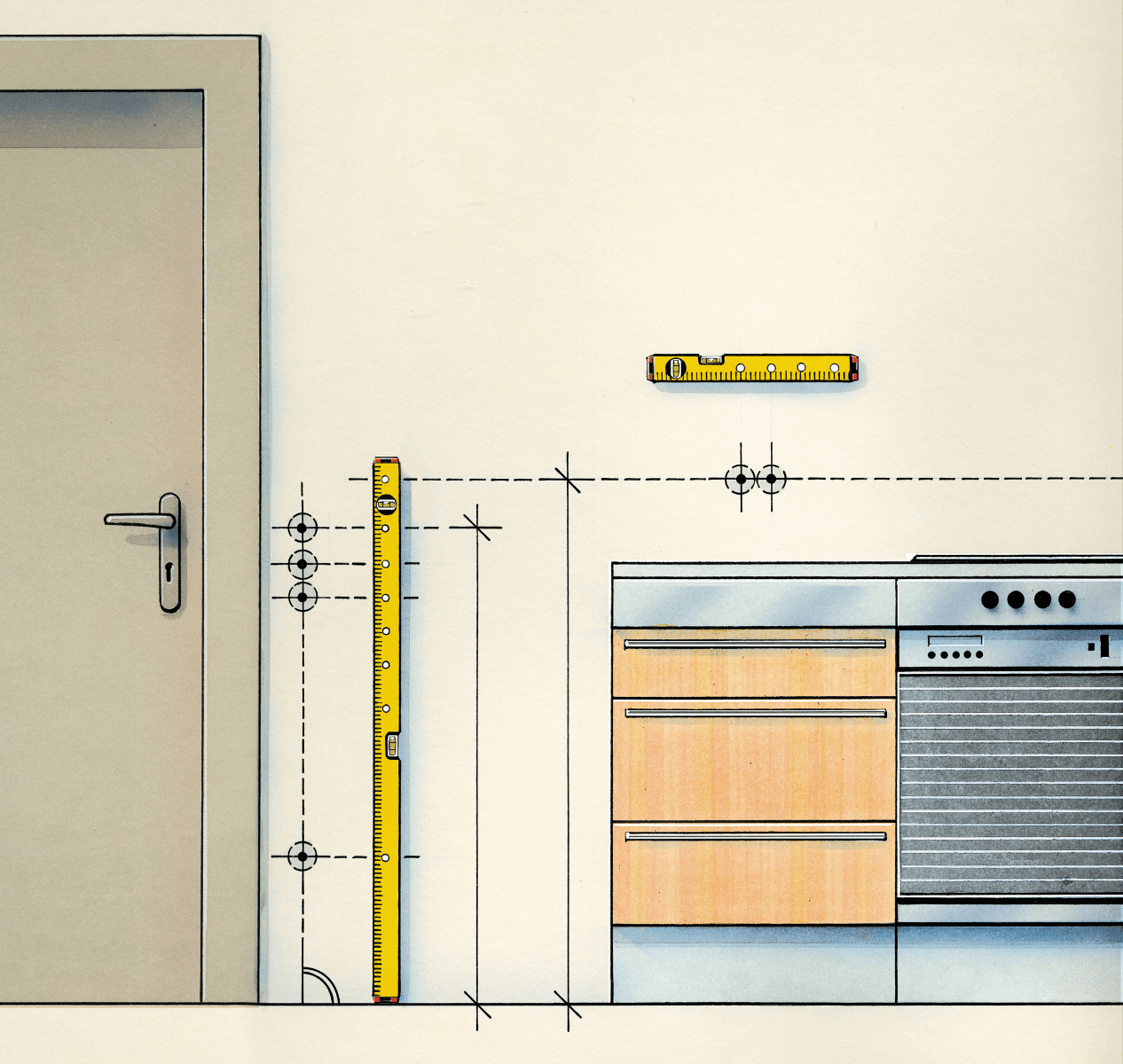

Electricians can now save time and effort when marking out sockets and switches. Marking out with this level, horizontally or vertically, can be carried out efficiently in a single step speeding up your workflow. And with its slip-stoppers at both ends this level gives you a secure hold on all surfaces when working.

Technical parameters:

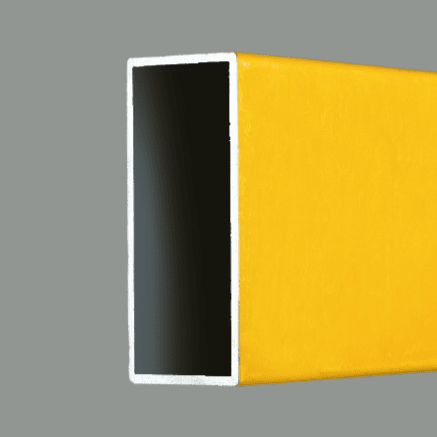

• Comfortably light aluminium rectangular profile with marking holes for electrical installation work.

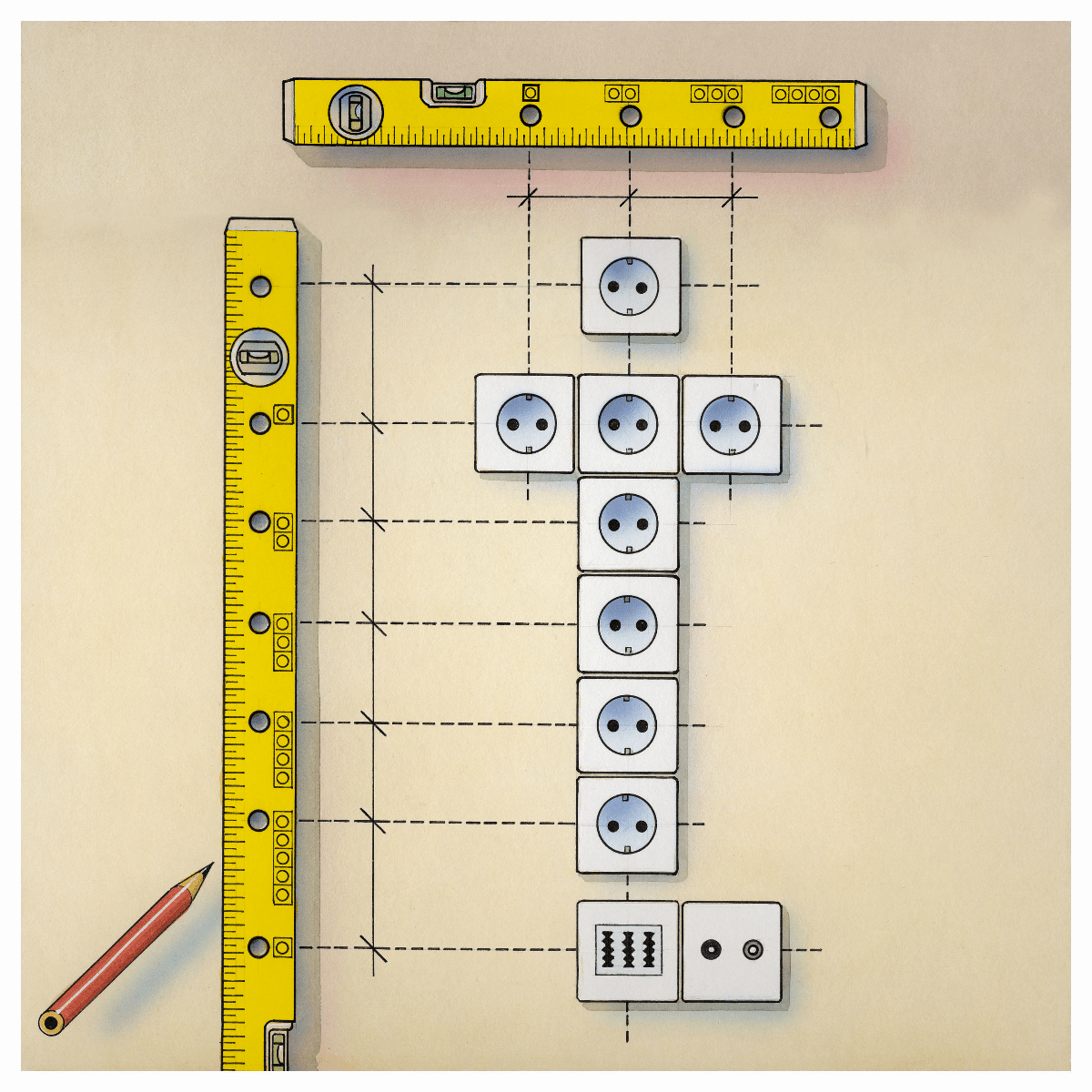

• Integrated marking holes with standardised spacing to measure and mark hole spacings for switches and plug sockets in a single step (71 mm, in accordance with DIN 49075). No more cumbersome tasks using several measuring tools.

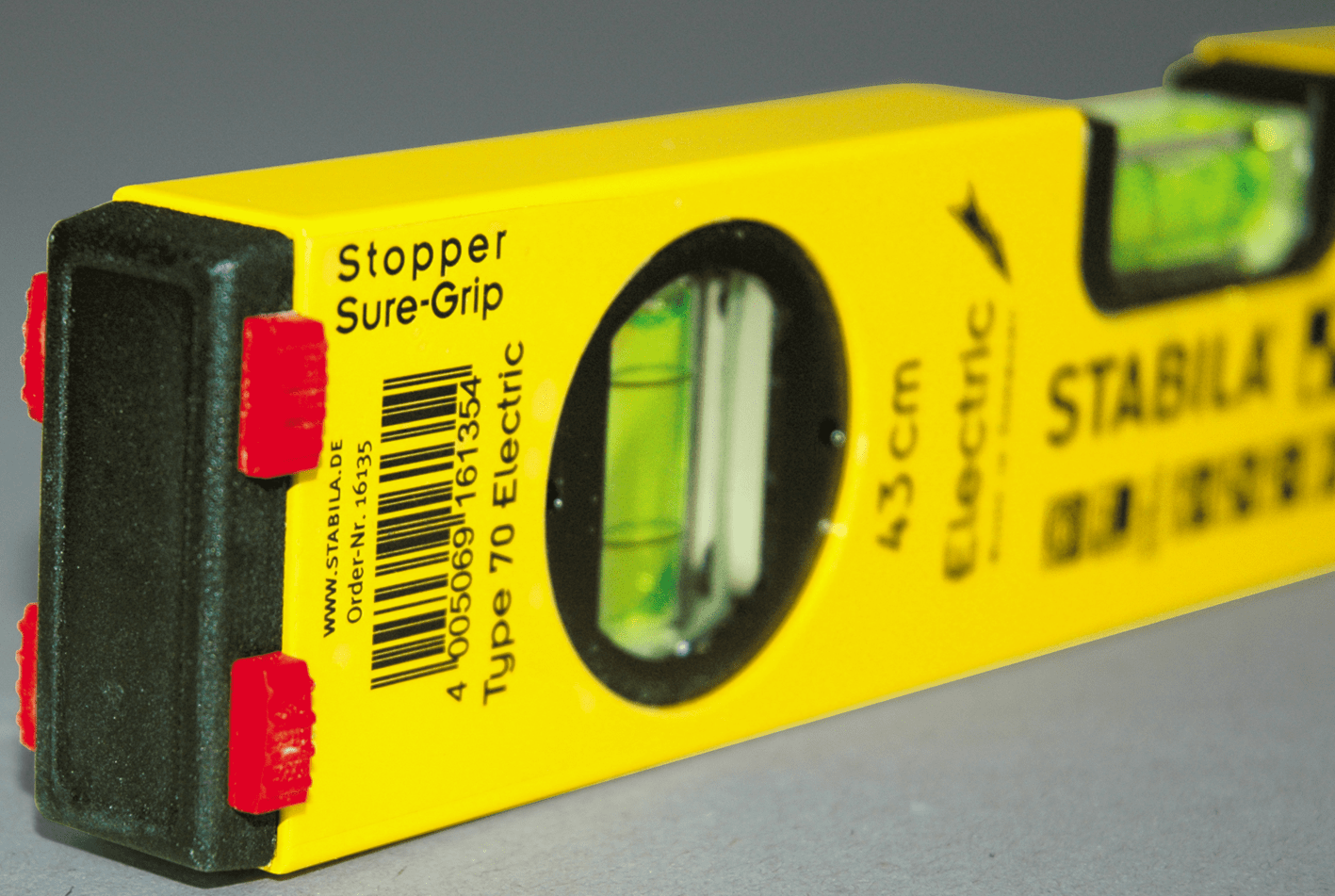

• End caps with an slip-stopper – for a firm seat when marking.
• Plastic end caps protect the profile against impact.
• Coated measuring surface protects delicate surfaces.
• Easy to clean thanks to the smooth sides and electrostatic powder coating.
• STABILA installation technology ensures long-term accuracy – measuring accuracy in normal position of ± 0.5 mm/m.

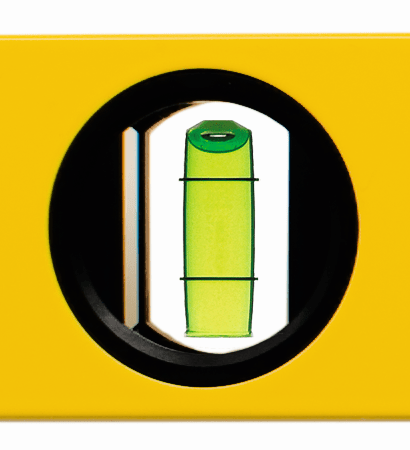

• Equipment: 1 horizontal vial, 1 vertical vial, 1 coated measuring surface, marking holes

Equipment:

• 1 horizontal spirit level
• 1 vertical spirit level
• 1 covered measuring surface
• Marking holes

Country of origin: Germany
